Euro Spec 2002 Speedometer Overlay

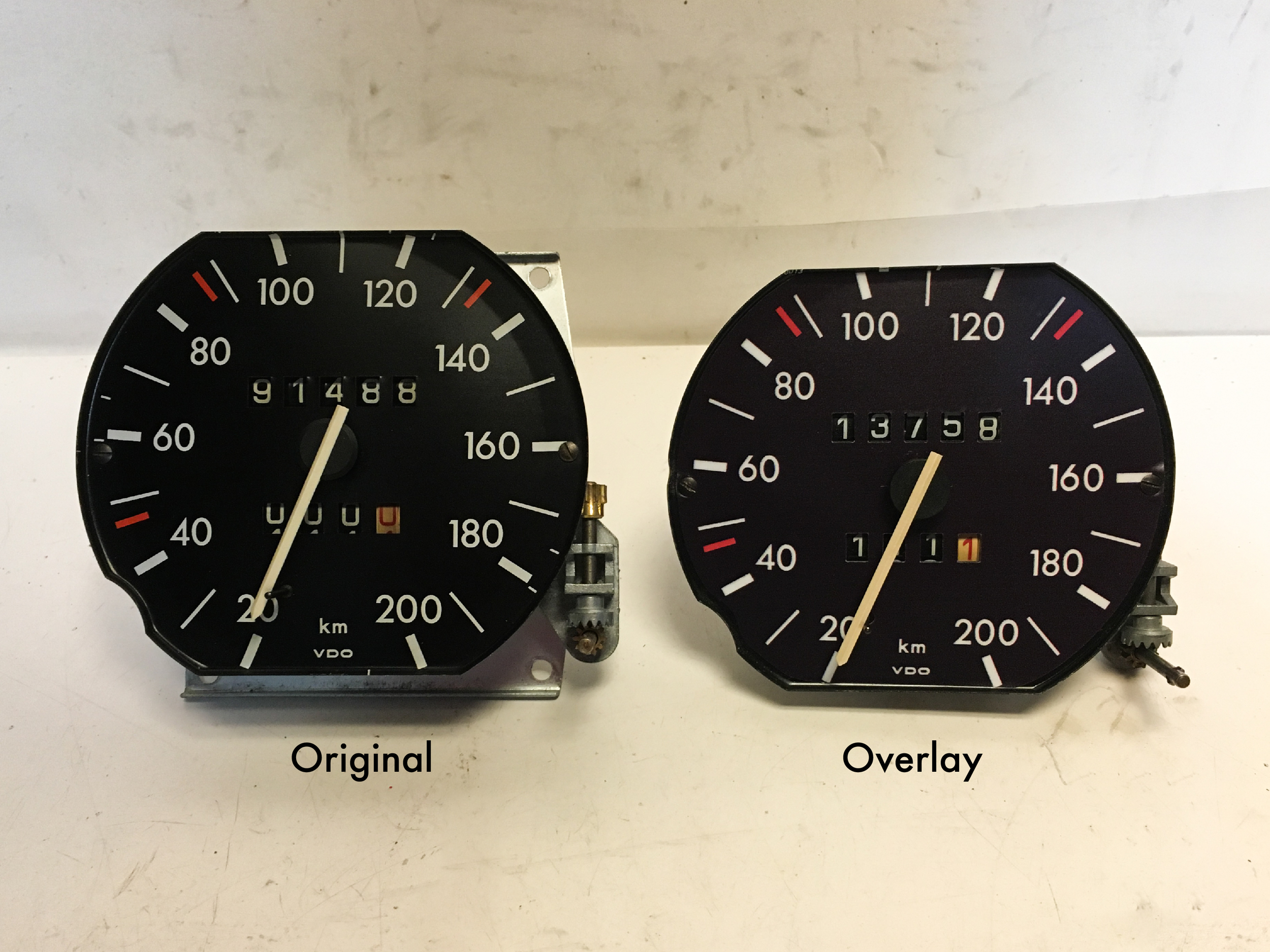

Carefully designed for the 1972-1977 BMW 2002, these speedometer overlays replace the MPH display with the euro-spec Kilometer readout. They are printed with a matte laminate overlay, giving a close appearance to original.
There are 2 designs:
1972-1973 - Found in "roundie" 2002s without the white "crosshairs." These came after the early "silver dollar" instrument clusters. Correct for cars built between 1972-1973.
1974-1977 - Found in the late, square taillight 2002s with the white "crosshairs." Correct for cars built between 1974-1977.

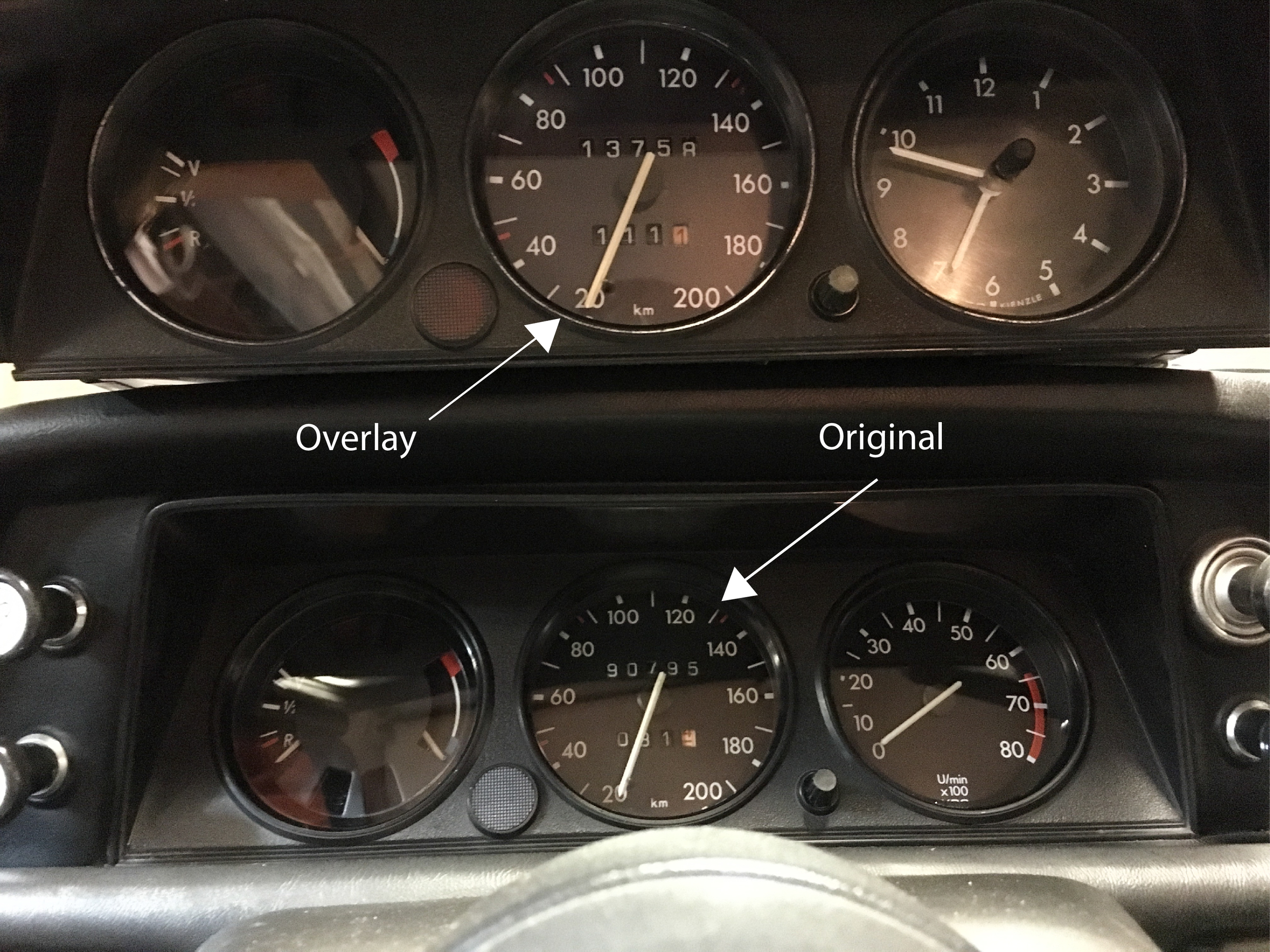

These overlays only work with gauges from 1972 and later. Please look carefully at the photos to insure you have the same gauge cluster style. These are correct for the base/standard 2002. The 2002tii came with a 220kph speedometer, and the 2002 Turbo had a 240kph speedometer outside of the USA.
To install - First remove the instrument cluster from your car, then remove the speedometer from the cluster. Remove the two small black screws holding in the faceplate. Slide the overlay over the speedometer needle and carefully lay the sticker in place, ensuring everything is lined up properly. Re-install the two black faceplate screws, put the speedometer back into the gauge cluster, and there you have it!
Free shipping anywhere in the US via USPS. International is an additional $5.
